Home > Product > Dry Magnetic Separator

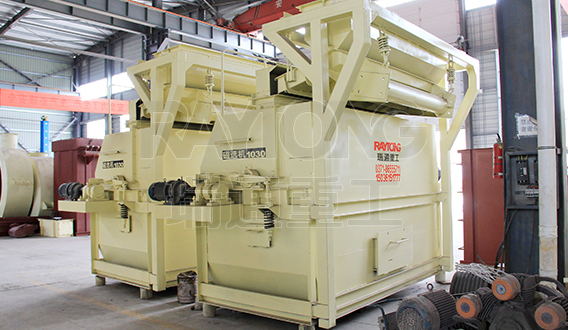

Dry Magnetic Separator
Processing ability:0.5-2.5 tph
Brief introduction:
Dry Magnetic Separators are designed to recover ferromagnetic materials. It can also be used for deironing of coal, nonmetal materials, building materials, etc.
Applications:
Materials with granularity below 3mm, such as magnetite, magnetic pyrite, roasted ore, titanic iron ore, hematite, limonite, siderite, wolframite, tantalum-niobium ore, red mud, quartz, fluorite and feldspar, wolfram and ilmenite etc.
Features:
1. Energy saving: low electric sonsumption, low running cost.
2.Environment protecting: suitable for arid area saving water resources, no second pollution.
3.Durable: magnetic pole is protected by the drum so not touched material directly,helpful to protect the magnetic pole.
4.High magnetix intensity, high effecient, simple structure, and easy maintenance.
Working principle:
When materials go through the permanent magnetic drum, the magnetic particles are absorbed to the drum surface and discharged through the magnetic product area. Meanwhile, the non-magnetic particles are ejected from the drum surface under the influence of the centrifugal force and gravitation and discharged through the non-magnetic product area.
Technical data:
| Model | GYC-60B | GYC-60B-1 | GYXY-2X60 | GYXY-3X60 | GYXY-3X80 | GYXY-4X80 |
| Cylinder dia*length(mm) | Φ320x600 | Φ320x600 | Φ320x600 | Φ320x600 | Φ404x800 | Φ404x800 |
| Magnetic induction(oe) | 3600 | 1100 | 3500 | 1100-3000-3500 | ||
| Cylinder quantity (per) | 1 | 1 | 2 | 3 | 3 | 4 |
| Cylinder Speed (r/min) | 66,47,33 | 34.5-172 (Adjustable) | 54.6-172 (Adjustable) | 64.5-172 (Adjustable) | ||
| Input size (mm) | 0.06-25 | 0.063-25 | 0.05-25 | 0-8 | ||
| Motor model | Y801-4 | Y901-4 | Y801-4 | ZBW-15 | ||
| Overall dimension (mm) | 860x550x840 | 860x550x840 | 1150x920x1500 | 1050x1025x1700 | 1770x1260x2400 | 2300x1000x2750 |
| Capacity (t/h) | 0.5-2.5 | 0.1-3 | 0.5-2.5 | 0.8-2.5 | 1.5-2.5 | 1.5-2.5 |
| Applcation socpe and introduction | Select | Select | Select | Shawing supplar | Shawing supplar | Select |
