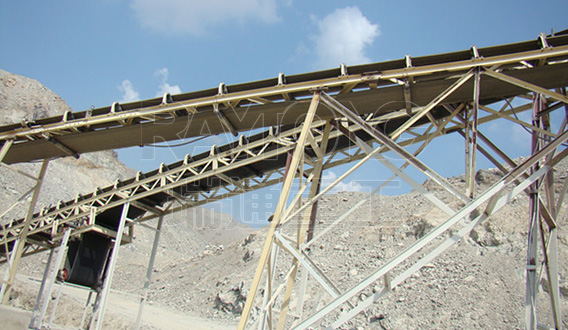

Home > Product > Belt Conveyor
78–1284 t/h
Belt conveyor has large transportation amount, simple structure, easy maintenance, standardized parts, etc.
Applications:
pebble, limestone, granite, basalt, diabase, andesite, etc
It is widely used in mining, metallurgical, coal or other departments to transport loose materials or complete items.
Features:
Our Belt Conveyor with such advantages :
simple structure; long conveying distance; wide application scope; strong adaptability to materials; high reliability; low energy consumption; high efficiency; low maintenance cost.
Working principle:
Belt conveyor is a common means of transport used in mining enterprises. It uses the belt conveyance to draw and support components and transport materials by way of the moving belt. It utilizes the inner friction and side pressure of loose material to increases the internal pressure from the pulling force in its moving direction produced by the rolling chamber in the adhesive chamber, thus increasing the internal friction. When inclination falls within certain scope, the inward friction force can ensure the stability between layers and create continuous movement. When the internal friction force between the layers is larger than the external force of the adhesive, the roller beneath the adhesive will move along with the material. When the ratio of internal force and external force meets a condition, the material flow is stable.
Technical data:
Belt width (mm) | Conveying length (m) Power (kw) |
Conveying speed (m/s) | Conveying amount (t/h) | ||
500 | ≤ 12/3 | ≤ 12-20 /4-5.5 | ≤ 20-30/5.5-7.5 | 1.3-1.6 | 40-100 |
650 | ≤ 12/4 | ≤ 12-20/5.5 | ≤ 20-30/7.5-11 | 1.3-1.6 | 80-120 |
800 | ≤ 10/4 | ≤ 10-15/5.5 | ≤ 15-30/7.5-15 | 1.3-1.6 | 120-200 |
1000 | ≤ 10/5.5 | ≤ 10-20 /7.5-11 | ≤ 20-40/11-22 | 1.3-2.0 | 200-320 |
1200 | ≤ 10/7.5 | ≤ 10-20/11 | ≤ 20-40/15-30 | 1.3-2.0 | 300-500 |
