VSI Sand Maker

Processing ability:

60–600 t/h


Brief introduction:

VSI Sand making machine is the latest product of authoritative experts from both home and abroad,connecting with quarry,mining present working conditions.

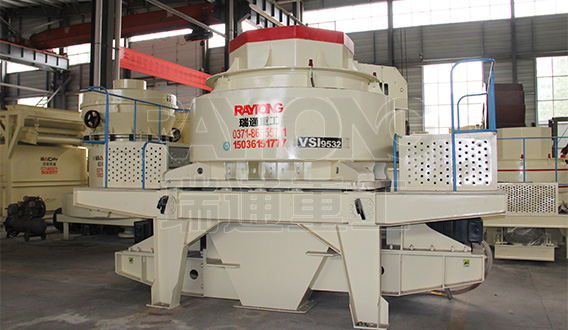

VSI Sand Maker VSI Sand Maker
VSI Sand Maker

Applications:

1. It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
2. It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings.
3. It is used widely in many industries such as building materials, metallurgy, chemical engineer, mining, refractory materials, cement etc.
4. It is used for producing glass raw materials quartz sand and other high purity materials.
pebble, limestone, granite, basalt, diabase, andesite, etc

Features:

1.Large handing capacity and high output.
2.Low wearing parts cost.
3.Perfect product shape.
4.Hydraulic devices are maintained easily.
5.Thinning oil lubricant and automatic.
6.Multi-functions and Flexible application.

Working principle:

VSI series sand making machine adpots high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.

Technical data:

Model VSI-7611 VSI-8518 VSI-9526 VSI-1140 VSI-1145
Capacity (t/h) Cascade and Center Feeding 120-180 200-260 300-360 450-520 490-600
Center Feeding 60-90 100-130 150-190 225-260 250-310
Feeding Size (mm) Soft Material < 35 < 40 < 45 < 50 < 50
Hard Material < 30 < 35 < 40 < 45 < 45
Rotation Speed (r/min) 1700-1890 1520-1690 1360-1510 1180-1310 1180-1280
Power of the Double Motors (kw) 110-150 180-220 264-320 400-440 440-520
Overall dimension L*W*H (mm) 3700*2150*2100 4140*2280*2425 4560*2447*2278 5000*2700*3300 5100*2790*3320
Power Source 380v:50hz
Vibrating Sensor Inspection Scope:0.1-20mm/s, it can be adjusted continuously.
Hydraulic Lubrication Station Power of Double Oil Pump 2x0.31kw
Safety Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter.
Overall Dimension L*W*H (mm) 820x520x1270
Power of Oil-Box     Heater 2kw
