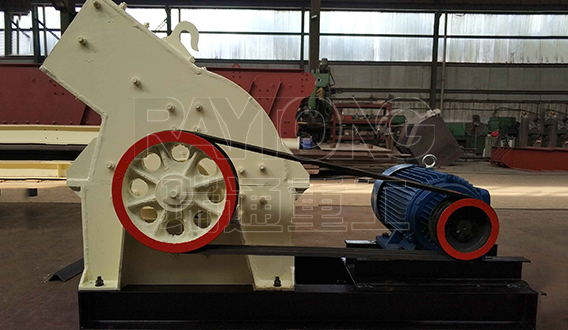

Hammer Crusher

Processing ability:

5–75 t/h

Brief introduction:

Hammer crusher is the most common kind of crushing equipment, high production capacity, uniform product, low energy consumption, simple structure, reliable quality, easy maintenance, etc.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

pebble, limestone, granite, basalt, diabase, andesite, etc

Features:

1. Compact structure, easy maintenance
2. High wear-resistant hammerhead
3. Small investment, big returns

Working principle:

Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.

Technical data:

Model	Input Size (mm)	Output Size (mm)	Capacity (t/h)	Power (kw)
PC300x200	<70	<15	3-5	4
PC400x300	<100	<15	5-10	11
PC500x350	<100	<15	8-15	18.5
PC600x400	<220	<15	10-25	22
PC800x600	<350	<15	20-40	55
PC800x800	<350	<15	20-60	75
PC1000x800	<400	<15	25-80	110
PC1000x1000	<400	<15	30-85	132
