High Efficiency Classifier

Processing ability:

125–1600 mm


Brief introduction:

Efficient Powder Separator is the latest powder separating equipment developed by our company, the separating rate could reach 85% -90% or more.

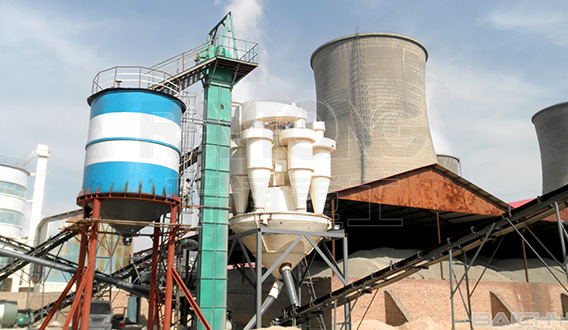

High Efficiency Classifier High Efficiency Classifier
High Efficiency Classifier

Applications:

pebble, limestone, granite, basalt, diabase, andesite, etc
In industrial grinding plant, loop flow grinding system is commonly used to improve efficiency of grinding system and reduce energy consumption. It is an important part of the system, its performance has direct impact on the system's efficiency. ZDS series of Efficient Powder Separator is the latest powder separating equipment developed by our company, the separating rate could reach 85% -90% or more, and the fineness adjustment is convenient and flexible, the performance is stable and reliable.

Features:

1. Using flexible combined propeller bulk plate.
2. High grading accuracy.
3. Spindle speed can be changed by adjusting motor speed, fine adjustment is easy.
4. Using low resistance with high efficiency cyclone dust collector.
5. Particle size distribution is more reasonable, final product quality has been improved significantly.

Working principle:

In industrial grinding plant, loop flow grinding system is commonly used to improve efficiency of grinding system and reduce energy consumption. It is an important part of the system, its performance has direct impact on the system's efficiency. ZDS series of Efficient Powder Separator is the latest powder separating equipment developed by our company, the separating rate could reach 85% -90% or more, and the fineness adjustment is convenient and flexible, the performance is stable and reliable.

Technical data:

Model S400 S500 S600 S700 S900 S1000 S1100 S1200
Matched mill (m) Φ1.5 Φ1.83 Φ2.2 Φ2.4 Φ3.0
Motor Blower Model YCTL200-4A YCTL200-4B YCTL200-4A YCTL200-4B YCTL200-4B YCTL200-4A YCTL200-4A YCTL200-4B
Rotating speed(r/min) 125-1250 132-1320 440-1340 440-1340 600-1340
Power (KW) 7.5 11 15 18.5 37 55 75 90
Model SCF-12NO.8C SCF-12NO.8C SCF-12NO.10C SCF-12NO.12C SCF-12NO.12C SCF-12NO.16B SCF-12NO.16D SCF-12NO.12C
Volume 24216 30900 37960 58200 119332 168000 192000 211000
Air pressure 2.18 2.43 2.34 2.07 2.26 2.70 2.70 2.60
Rotating speed(r/min) 1500 1600 1200 1000 800 960 960 710
Model Y180M-2 Y200L1-2 Y225S-4 Y225M-4 Y335M1-8 Y335M1-6 Y335M3-6 Y335L-8
Power (KW) 22 30 37 55 132 160 200 220
Rotating speed of shaft (r/min) 190-380 190-380 150-350 150-350 140-350 100-300
