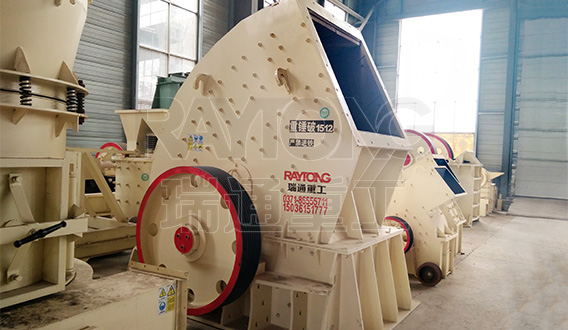

Heavy hammer crusher

Processing ability:

100-800 t/h


Brief introduction:

Brief introduction: PCZ series heavy hammer crusher is also called huge stone cusher. Because of the alloy composite hammer design, it decrease 35% production cost.

Heavy hammer crusher Heavy hammer crusher
Heavy hammer crusher

Applications:

Heavy hammer crusher is widely used for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The large capacity makes heavy hammer crusher becomes the preferred equipment in large stone crushing industry.

Features:

1) Large feeding size.

2) High capacity and low energy consumption.

3) Simple structure and easy maintenance.

4) Lower investment and get profits quickly.

5) Reduce the risk of clogging and adhesion with wet and much soil raw materials using no grate design.

Working principle:

Motor drives the rotor quickly in the crushing cavity. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them. Without the grate design, wet and much soil raw material will not clogged. Finally, the finished porduct through the outlet smoothly.

Technical data:

Model Feeding Size(W*L)(mm) Rotor Size(Dia.xL)(mm) Input Size(mm) Power(KW) Capacity(t/h) Overall Dimension(mm)
PCZ-0808 800*5000 850*790 ≤450 55-75 50-90 1760*1700*1540
PCZ-1308 850*800 1310*790 ≤600 55*2 100-160 2818*2100*2390
PCZ-1510 1000*850 1500*950 ≤750 132*2 160-210 3260*2370*2750
PCZ-1512 1210*900 1500*1160 ≤750 160*2 220-350 3260*2580*2750
PCZ-1615 1500X1200 1650*1452 ≤1000 200*2 350-500 3456*2915*3185
PCZ-2015 1500X1400 2000*1500 ≤1200 315*2 500-800 3880*2990*3560
