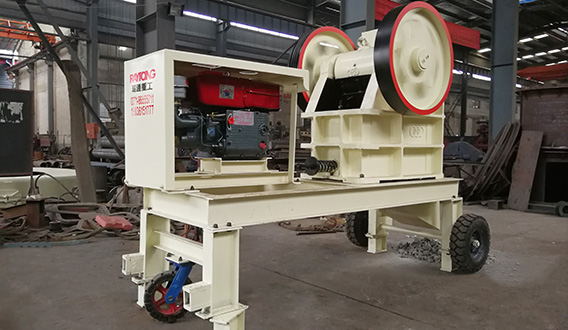

Small Jaw Crusher

Processing ability:

1-20t/h

Brief introduction:

The small jaw crusher, also called mini jaw crusher, is designed for fast crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

Mining, metallurgy, building materials, road, chemicals and a variety of ores, and many other industries.

Crushing materials: limestone, calcium carbide, calcium carbide slag, shale, basalt, river gravel, blue stone, iron ore, copper, steel slag, etc.

Features:

1) High reduction ratio and even final particles.

2) Simple structure and easy to be maintained.

3) Easy replacement of wearing and spare parts.

4) Reliable operation and long service life.

5) Convenient maintenance with low cost.

6) Electric motor or diesel engine

Working principle:

When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.

Technical data:

Model	Feeding Open Size (mm)	Max. Feed Size (mm)	Discharging opening size(mm)	Capacity(t/h)	Motor power(kw)	Overall dimension(mm)
PE150X250	150X250	130	15-45	1-4	5.5	896745935
PE200X300	200X300	180	15-50	2-6	5.5	910750990
PE200X350	200X350	180	18-70	3-10	7.5	1000870990
PE250X400	250X400	210	25-60	5-20	15	121515201030
