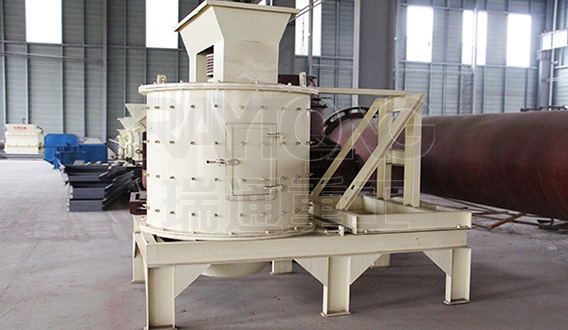

Vertical compound crusher

Processing ability:

10-85 t/h

Brief introduction:

Vertical compound crusher is shorted for compound crusher, is one of the common equipment in crushing plant and sand making plant.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

pebble, limestone, granite, basalt, diabase, andesite, etc

Features:

1.High crushing ratio, adjustable discharging size.
2.No grates device, not easily blocking for crushing high moisture, sediment materials.

Working principle:

Materials drop into high speed rotating impeller in vertical, under high speed centrifugal force, stroked and crushed with materials scattered around the impeller in umbrella, after repeatedly impacting then there will be forming eddy current between the impeller and frame, materials will be crushed again and finally discharge from outlet directly, whole system formed closed circuit, separated by outer screen to control fineness.

Technical data:

Model	Feeding Size(mm)	Output Size(mm)	Capacity (t/h)	Power(kw)	Overall Dimension (LWH)
PFL-800	< 100	< 3-5	10-20	22	210012001700
PFL-1000	< 120		20-40	45	260014001900
PFL-1250	< 150		40-70	75	280016002100
PFL-1500	< 180		70-100	132	310019002200
PFL-1750	< 200		130-190	200	371023602390
PFL-2000	< 220		200-260	315	410026602620
