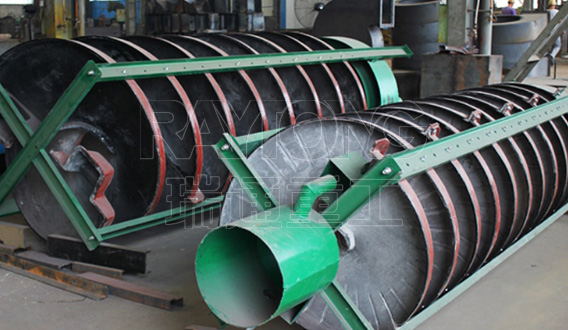

Spiral Chute

Processing ability:

0.2-8 tph

Brief introduction:

Spiral chute is a gravity separation equipment of separation different weight mineral by inertial centrifugal force pulp produced in helix turning motion.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

Spiral chute has been widely used in the?treatment of iron ore,?tungsten, tin ore, niobium tantalum ore, coastal &?riverside placer and gold ore.

Features:

1.Stable and clear mineral separation with large handling capacity;

2.High efficiency with higher concentration ratio and high recovery;

3.High adaptability of the feeding capacity and the variability of concentration, granularity and grade;

4.Easy for installation with small floor space and simple operation;

5.Material quality material quality with features of moisture resistance, rust protection and corrosion resistance;

6.With advantages of non-powered, without moving parts and without noise, etc.

Working principle:

Ore pulps are uniformly fed into machine and form different layers as they pass across chute. Heavy minerals precipitate to bottom and are moved toward inner edge by the comprehensive action of various forces; light minerals are moved toward outer inner due to the speedy rotation. As a result, mineral particles with different density are divided into three zones------concentrate, middling and tailing.

Technical data:

Model	5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
Outter dia(mm)	1500	1200	900	600	400
Spiral distance(mm)	540,720	900,720,540	675,540,405	450,360,270	240,180
Spiral distance ratio	0.75,0.6,0.45				0.6,0.45
Gradient (°)	9°
Number of threads	4-2	4-2	4-2	3	2
Feeding size(mm)	0.3-0.02	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Mine density (%)	25-55
Capacity (t/h)	8-6	4-6	2-3	0.8-1.2	0.15-0.2
Outside diameter(mm)	1560	1360	1060	700	460
Heigh (mm)	5230	5230	4000	2600	1500
