10-85 t/h

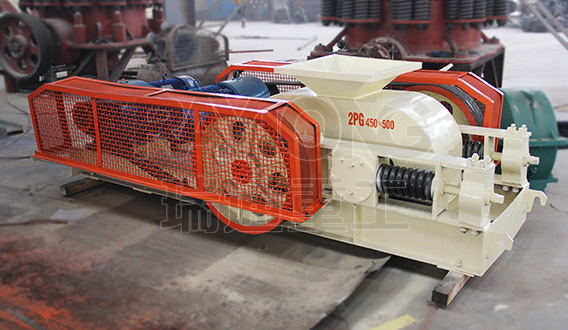

Double roller crusher is based on the principle of double rollers fraction, feeding materials into rollers and then be extruded or ripped till the requirements.
Features:
Double overload and stop iron protecting device.
1.Adopt hydraulic connected, when overload or through iron materials, crusher will shut down automatically.
2.The rollers can reverse rotate to discharge non-crushing foreign bodies or iron materials.
Working principle:
The materials to be crushed fall from the feeding mouth to the space between the two rolls.After being squeezed and crushed, the final products will naturally fall. When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down.Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roller crusher's the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.
Technical data:
Model | Roller Diameter (mm) | Roller Length (mm) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) |
2GP-400X250 | 400 | 250 | ≤ 25 | 1-8 | 5-10 | 5.5*2 |
2GP-500X450 | 500 | 450 | ≤ 30 | 1-15 | 10-20 | 11*2 |
2GP-610X400 | 610 | 400 | ≤ 40 | 1-20 | 13-35 | 15*2 |
2GP-750X500 | 750 | 500 | ≤ 40 | 2-20 | 15-40 | 18.5*2 |
2GP-800X600 | 800 | 600 | ≤ 40 | 3-20 | 20-50 | 22*2 |
2GP-1000X500 | 1000 | 500 | ≤ 120 | 3-20 | 30-60 | 37*2 |
2GP-1100X600 | 1100 | 600 | ≤ 150 | 3-20 | 50-80 | 37*2 |
2GP-1000X1000 | 1000 | 1000 | ≤ 120 | 3-20 | 60-80 | 45*2 |
