HGM Micro-powder Grinding Mill

Processing ability:

350–6000 kg/h


Brief introduction:

HGM series of three-rings and medium-speed micro powder grinder is a new type of making micro powder machines through more than twenties times research and improvement

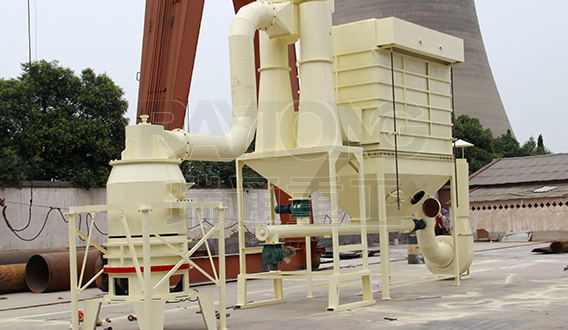

HGM  Micro-powder Grinding Mill HGM  Micro-powder Grinding Mill
HGM  Micro-powder Grinding Mill

Applications:

pebble, limestone, granite, basalt, diabase, andesite, etc
HGM series of three-rings and medium-speed micro powder grinder is a new type of making micro powder machines through more than twenties times research and improvement, depending on two decades of hard work & experience and inputting the latest mechanical techniques of Sweden. It is an incorporated one of the two countries and a leader of the grinding industry nowadays.

Features:

1.Ultra-fine powder processing,the smallest size can reach 2500 mesh.
2.Safe and reliable operation in grinding cavity
3.Environmental protecting,less pollution

Working principle:

The main motor of HGM Three-rings Medium-Speed Micro-powder Grinder drivers spindle and every layer turntable rotating by reducer, through studs, turntable drive dozens of ring roller grinding rolling and rotating in grinding ring roll away. Bulk material was crushed into small particles by hammer crusher, then enter into storage silo by elevator, evenly to the material is sent into the middle of upper turntable by electromagnetic vibrating feeder. Material is scatter to the peripheral edge under the effect of centrifugal force, and fall into the grinding ring roll away, stamping, roll grinding, polishing and crushing by ring rolling. The material is crushed in the first layer then falls into the second and third layer. The pumping action of high pressure centrifugal fan sucked the external air into the machine, and send crushed coarse powder into powder separator through the third layer. The vortex generated by the rotating turbine of powder separator make coarse particulate material down regrinding, powder along with the air go into the cyclone powder collector, and discharge from lower discharge valve, that is finished product, but airflow along with a small amount of fine dust, is purified through pulse dust collector and then discharged from the fan and muffler.

Technical data:

Model Average Diameter(mm) Ringing Roller/
Roller Ring NO
Input Size of
Main Frame(mm)
Finished Product Size Capacity(t/h) Motor Power(kw) Overall Dimension
L×W×H(m)
Ringing
Roller(pcs)
Roller
Ring NO(pcs)
Micron Mesh Main Grinder Powder
Separator
Draft Fan Feeder Discharge
Valve
HGM60 600 15 3 ≤ 10 5-47 3250-325 0.35-2.5 37 11 30 0.06 0.75 10×3×5.5
HGM80 800 21 3 ≤ 10 0.6-4 75 22 45 0.06 0.75 11.9×2.7×5.8
HGM100 1000 27 3 ≤ 20 0.9-6 110 30 75 0.15 1.1 15.5×4.5×8.6
HGM1036 1000 36 4 ≤ 20 1.2-10 132 37 75 0.15 1.1 18×4.6×8.6
