Home > Product > Mobile Jaw Crushing Plant

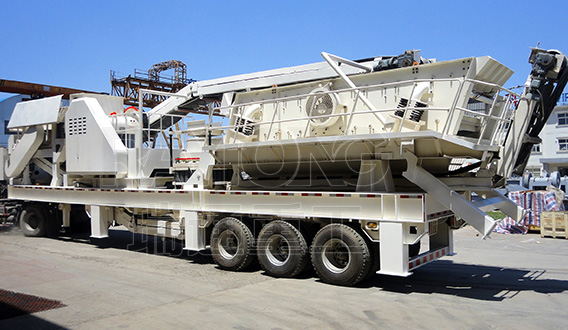

Mobile Jaw Crushing Plant
Processing ability:10-240 t/h
Brief introduction:
The mobile crushing plant is designed for road transportation, especially for driving to crushing sites that are difficult to access, which greatly reduce installation time compared with the stationary one. It offers high efficient and low cost project plan without environment limit.
Applications:
Mobile crusher is mainly used in hard rock crushing ,aggregate production , outdoor mining crushing,construction waste recycling, cement production and tunnel crushing.
Features:
1. Incorporated design. It has high standard requirements on steel structure and high strength wear-resistance parts to crush even hardest rocks(400Mpa)
2.Truck mounted and easy to move. Due to its stong structure, it can be transported on highway and moved between different crushing sites.
3. With support legs on truck,quick to set-up. The supporting legs height can be adjustable, adopt hydraulic controling parts.
4. Automatic lubrication system. It reduces the running and maintenance cost and supports operation the plant at low temperature.
5. Flexible configuration and great adaptability
Working principle:
Mobile jaw crusher plant is one kind of Tire Type Mobile Crushing & Screening plant. According to the different requirements of different crushing process, Mobile crushing and screening plants can be the following two processes of "crushing first, screening second" or "screening first, crushing second". The crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing system and secondary crushing system, while the three-stagesystems includes primary crushing plant, middle crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.
Technical data:
| Model | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
| Transport size | ||||||
| Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
| Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
| Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
| Alex weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
| King pin weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
| Jaw crusher | ||||||
| Model | PE | PE | PE | PE | PE | PEX |
| Feed opening(mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
| Discharging hole setting range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
| Capacity(t/h) | 15-55 | 40-90 | 40-130 | 105-225 | 150-360 | 15-100 |
| Feeder | ||||||
| Feed hopper volume | 3 | 4 | 7 | 10 | 10 | 3 |
| Hopper width | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
| Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW600X130 | GZT0724 |
| Belt conveyor | ||||||
| Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
