Flotation Machine

Processing ability:

0.037-4 m3/cell


Brief introduction:

Flotation machine can be used for many ore beneficiation . It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

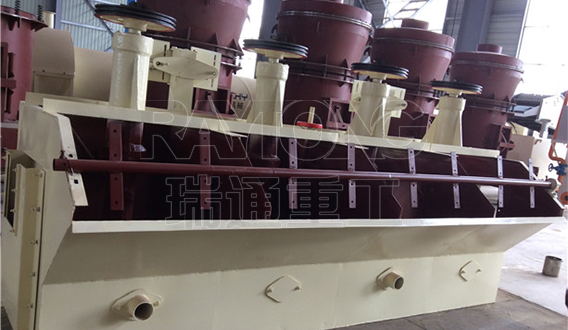

Flotation Machine Flotation Machine
Flotation Machine

Applications:

Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry.

Features:

1.Simple structure, strong agitation ability, and low energy consumption.

2.The impeller is equipped with holey cylinder air alloter.

3.The air scattering is uniform and the mixing effect of air and slurry is good.

4.U-shaped tank, little sedimentation of sand.

5.Solid particles can be fully suspended, high flotation index.

6.Long service life of vulnerable parts.

Working principle:

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Technical data:

SF series Flotation Machine

Model SF0.37 SF0.7 SF1.2 SF2.8 SF4
Volume (m³) 0.37 0.7 1.2 2.8 4
Impeller diameter(mm) 300 350 450 550 650
Capacity (m³/min) 0.2-0.4 0.3-0.9 0.6-1.2 1.5-3.5 0.5-4
Impeller Speed(r/min) 352 400 312 268 238
Impeller motor Model Y90L-4 Y100L2-4 Y132M2-6 Y160L-6 Y180L-6
Power (Kw) 1.5 3 5.5 11 15
Scraper motor Model Y90S-4 Y90L-4
Power (Kw) 1.1 1.5



XJK Series Flotation Machine

Model XJK-0.13(1A) XJK-0.23(2A) XJK-0.35(3A) XJK-0.62(4A) XJK-1.1(5A) XJK-2.8(6A)
Volume (m³) 0.13 0.23 0.35 0.62 1.1 2.8
Impeller diameter(mm) 200 250 300 350 500 600
Capacity (m³/min) 0.05-0.16 0.12-0.28 0.18-0.4 0.3-0.9 0.6-1.6 1.5-3.5
Scraper Speed(r/min) 17.5 17.5 17.5 26 26 26
Impeller motor Model Y100L1-4 Y90L-4 Y90L-4 Y100L2-6 Y132M2-6 Y160L-6
Power (Kw) 2.2 1.5 1.5 3 5.5 11
Scraper motor Model Y80M1-4 Y80M1-4 Y80M2-4 Y80M2-4 Y90S-4 Y90S-4
Power (Kw) 0.55 0.55 0.75 0.75 1.1 1.1
