Bucket elevator

Processing ability:

6-46 m3/h


Brief introduction:

Bucket elevator is a straight conveying equipment for upward transporting power,small granular material.

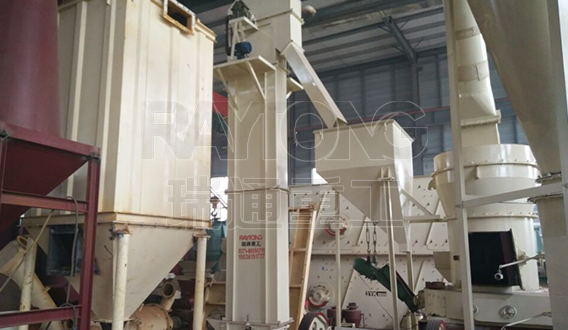

Bucket elevator Bucket elevator
Bucket elevator

Applications:

Metallic and Non-Metallic ores, such as bauxite, coal, rock products, sand, gravel, cement. gypsum, limestone etc

Features:

1.Big capacity ability.

2.Long service life, the transmission chain service life is morn than 5 years.

3.Compact structure,good sealing and little environmental pollution.

4.Easy operation and maintenance, less wearing parts.

Working principle:

When the motor is switched on, the bucket mounted on bucket belt does circulating motion along the leg from the bottom up; materials enters the bucket and conveys to the head section of the elevator when filled, When the bucket belt turns around the head pulley, materials are ejected from the bucket under the action of centrifugal force and gravity. By such a repeated circle the materials in bottom are lifted to a given height and then discharged, so as to meet a requirement of vertical lifting.

Technical data:

Model 160 160 250 250 315 315 400 400
Type of hopper Q H Q H Q H Q H
Capacity(m3/h) 5.4 9.6 12 22 17 30 24 46
Bucket width(mm) 160 160 250 250 315 315 400 400
Bucket volume(L) 0.5 0.9 1.3 2.2 2 3.6 3.1 5.5
Pitch of buckets(mm) 280 280 360 360 400 400 480 480
Belt width(mm) 200 200 300 300 400 400 500 500
Speed(m/s) 1.4 1.4 1.6 1.6 1.6 1.6 1.8 1.8
