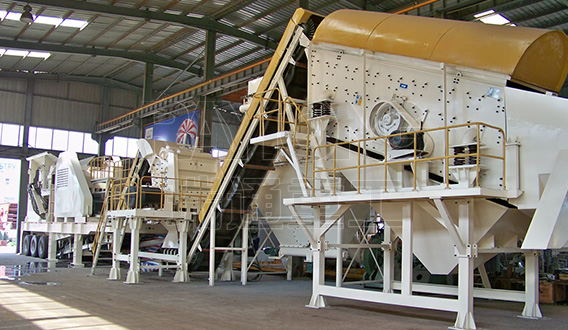

Home > Product > Mobile Impact Crushing Plant
10-180 t/h
The mobile crushing plant is designed for road transportation, especially for driving to crushing sites that are difficult to access, which greatly reduce installation time compared with the stationary one. It offers high efficient and low cost project plan without environment limit.
Applications:
Mobile crusher is mainly used in hard rock crushing ,aggregate production , outdoor mining crushing,construction waste recycling, cement production and tunnel crushing.
Features:
1. Incorporated design. It has high standard requirements on steel structure and high strength wear-resistance parts to crush even hardest rocks(400Mpa)
2.Truck mounted and easy to move. Due to its stong structure, it can be transported on highway and moved between different crushing sites.
3. With support legs on truck,quick to set-up. The supporting legs height can be adjustable, adopt hydraulic controling parts.
4. Automatic lubrication system. It reduces the running and maintenance cost and supports operation the plant at low temperature.
5. Flexible configuration and great adaptability
Working principle:
Equipment consists of: vibrating feeder, jaw crusher, or deep cavity "stone at stone" impact crusher, vibrating screen, foldable belt conveyor. To meet customer’s high standard demand, it also can be equipped with cone crusher, sand making machine, or dust removal equipment.
Process: raw materials are fed on to feeder by excavator or wheel loader,then evenly and continuously conveyed into jaw stone crushing equipment for primary crushing. The crushed stone materials are conveyed to secondary stage crusher by belt conveyor for secondary crushing before they are sent to vibrating screen to be separated. After separating, qualified materials will be taken away as final products, while unqualified materials will be carried back to the stone crushing equipment for recrushing. And customers can classify final products according to different size ranges. According to different requirements, customers can adjust the size of their final products from this stone crushing plant. Clients will get the satisfactory products after objects being crushed for several times.
Technical data:
SMC Impact crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS | |
Transport size | ||||
Length(mm) | 10800 | 12200 | 12500 | |
Width(mm) | 2480 | 2743 | 2900 | |
Height(mm) | 4170 | 4200 | 4200 | |
Alex weight(kg) | 15900 | 17200 | 22100 | |
King pin weight(kg) | 11300 | 14300 | 17500 | |
Impact crusher | ||||
Model | PF1010 | PF1210 | PF1214 | |
Feed opening(mm) | 400X1080 | 400X1080 | 400X1080 | |
Vibrating screen | Vibrating screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 |
