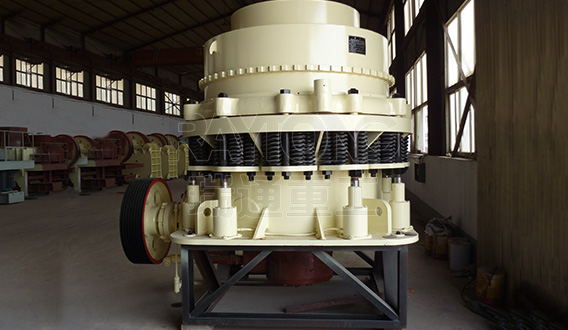

CS Cone Crusher

Processing ability:

27–1270 t/h


Brief introduction:

Baichy Symons Cone crusher has reliable structure, high efficiency, easy adjustment and economic characteristics.

CS Cone Crusher CS Cone Crusher
CS Cone Crusher

Applications:

pebble, limestone, granite, basalt, diabase, andesite, etc

Features:

1. Good product grain shape, strong production capacity
2. Good reliability and high stability
3. Easy maintenance, and easy to operate
4. Low operating costs, a wide range of applications
5. Laminated crushing, the material good grain shape

Working principle:

Cone crusher consist of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone,mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening.
(1) Transmission device: Countershaft assembly is supported by the bronze countershatf bushings, can be dismounted for convenience of maintence. And the gear and pinipn with high strengh and high precision are adopted to ensure the reliable operation of equipment.
(2) Main shaft: Forged form hardened and tempered chrome molybdenum steel particularly large diameter to suit wear-resisting application. High quality copper socket liner can bear high crushing load, and allows the machine working under rigorous condition.
(3) Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable.
(4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.

Technical data:

Model Cavity Type Crushing Cone
Diameter(mm)
Adjusting Range of
Discharge Opening(mm)
Max feeding size
(mm)
Capacity
(t/h)
Motor
(kw)
Overall size
(mm)
CC75 Coarse 900(3') 25-38 150 59-163 75 2450×1820×2100
CF75 Medium 900(3') 13-38 85 45-91 75 2450×1820×2100
CS75 Fine 900(3') 6-22 35 27-90 75 2450×1820×2100
CC110 Coarse 1200(4') 15-50 180 110-250 110 2485×2050×2445
CF110 Medium 1200(4') 10-38 130 80-180 110 2485×2050×2445
CS110 Fine 1200(4') 10-31 90 63-140 110 2485×2050×2445
CC160 Coarse 1295(4 1/4') 19-50 205 172-349 132 2885×2320×2855
CF160 Medium 1295(4 1/4') 16-38 178 132-253 132 2885×2320×2855
CS160 Fine 1295(4 1/4') 13-31 115 109-181 132 2885×2320×2855
CC220 Coarse 1400(4 1/2') 30-60 235 210-530 220 3153×2358×2750
CF220 Medium 1400(4 1/2') 22-45 180 180-475 220 3153×2358×2750
CS220 Fine 1400(4 1/2') 19-40 100 130-260 220 3153×2358×2750
CC250 Coarse 1650(5 1/2') 30-60 228 299-635 250 3410×2620×3350
CF250 Medium 1650(5 1/2') 25-50 205 258-417 250 3410×2620×3350
CS250 Fine 1650(5 1/2') 20-45 178 181-327 250 3410×2620×3350
CC315 Coarse 2135(7') 31-64 314 1125-1814 400 4613×3302×4638
CF315 Medium 2135(7') 25-51 284 862-1424 400 4613×3302×4638
CS315 Fine 2135(7') 19-38 236 544-1034 400 4613×3302×4638
