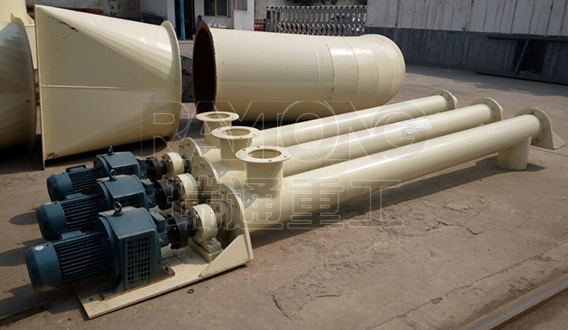

Screw conveyor

Processing ability:

25-75 tph

Brief introduction:

The screw conveyor is a conveyor device, which utilizes the rotation of spiral blade in the U-groove or tube to continuously convey loose materials such as powder, granular and small piece material.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

It is applied to convey loose materials such as powder, granular and small piece material, such as clay powder, pulverized coal, cement, sand, grain, small piece of coal, cobble, and cast iron filings, etc.

Features:

1. Large handling capacity, safe and reliable.

2. Strong adaptability, convenient installation and maintenance, long service life.

3. Small volume, high rotate speed in order to ensure rapid and uniform transport.

Working principle:

By adopting sliding bearing, dustproof sealed device and slide block, that make screw conveyor easy to install and maintain. When the screw shaft rotates, rotary spiral vane pushes materials continuously moving forward in closed housing.

Technical data:

Model	LSY165	LSY219	LSY273	LSY325
Metric Diameter of Screw (mm)	165	219	273	325
Length of Screw Conveyor (m)	2.5-6	4.5-12	6-9	6-9
Rotary Speed of Main Axle (r/min)	100	209	209	174
External Case Diameter (mm)	φ165	φ219	φ273	φ325
Working Angle (°)	≤20	≤35	≤35	≤35
Conveying Capacity (t/h)	25	35	50	75
Motor Power (kW)	3-7.5	7.5-11	11-18.5	22
