JCE European Jaw Crusher

Processing ability:

10-85 t/h


Brief introduction:

Jaw crusher is a kind of machine which is widely used as primary and secondary crushing equipment to crush material with compression resistance less than 320MPa.

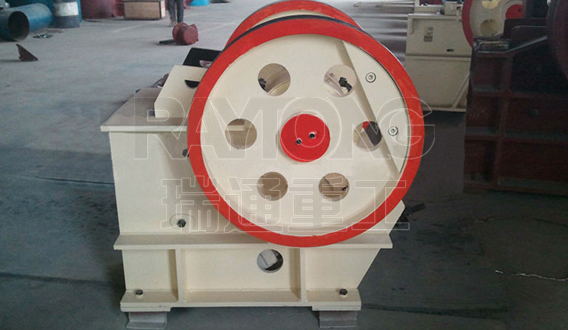

JCE European Jaw Crusher JCE European Jaw Crusher
JCE European Jaw Crusher

Applications:

Application:
pebble, limestone, granite, basalt, diabase, andesite, etc
Applied material:
This jaw crusher is mainly used in various industries, such as mining, smelting, road and railway construction, water conservation and chemical industry etc. The feed size of the crusher is less than 500 mm and the compressive strength of material to be crushed does not exceed 320Mpa.

Features:

1.Large crushing ratio and even discharged materials.
2.The adjusting range of discharged outlet is large and reliable,can meet various requirements of customer.
3.Lubrication system is safe and reliable,easy to change the spare parts and convenient maintenance.
4.Simple structure and low operation cost.

Working principle:

The crushing method of European type jaw crusher is dynamic squeeze. The working principle is: the electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

Technical data:

Model Feeding Open Size (mm) Max. Feed Size (mm) Outlet Size (mm) Centrifugal Shaft Speed (rpm) Capacity (t/h) Motor Type Motor Power (kw) Motor Speed (rpm) Ovenrall Dimension (mm)
JCE403 220X400 220 30-80 290 10-50 Y160L-4 15 1460 1283*1190*1104
JCE604 400X600 350 38-85 250 15-70 Y225M-6 37 980 1920*1460*1840
JCE1003 250X1000 220 20-40 330 15-50 Y225M-6 30 980 1400*1850*1310
JCE1302 180X1300 150 10-30 320 12-35 Y225M-6 30 980 1320*2150*1175
JCE1303 250X1300 220 70-100 290 26-85 Y280S-6 45 980 1450*2150*1175
JCE6310 630X1000 580 80-180 240 100-195 Y315M-8 75 740 3763*2280*2644
JCE8711 870X1100 720 85-220 240 130-360 Y315L2-8 110 740 4124*2480*3020
JCE1113 1100X1300 960 120-260 210 260-580 Y355M2-8 160 740 4836*2762*3489
JCE1216 1200X1600 1180 165-320 180 450-800 Y355L2-8 200 740 6700*4040*4465
