Spring Cone Crusher

Processing ability:

5–1000 t/h


Brief introduction:

The spring cone crusher has been developed to crush feed materials into desired end products efficiently, reliably and economically.

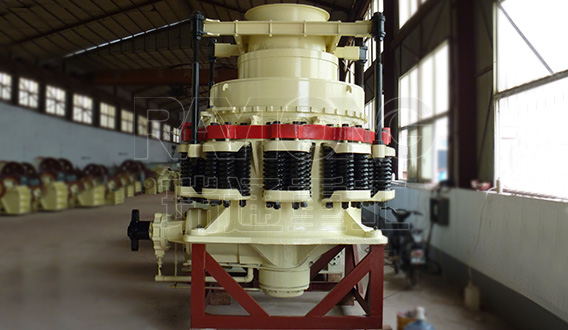

Spring Cone Crusher Spring Cone Crusher
Spring Cone Crusher

Applications:

Spring Cone Crusher breaks material by squeezing or compressing it between convex and concave shaped surfaces covered by manganese as the wear surface. Normally used as the secondary or tertiary crusher, the cone crusher has been developed to crush high or medium hardness material, such as iron ore ,copper ore, limestone, quartz, granite, and sand stones, etc.

Features:

1. simple structure and High efficiency low energy consumption
2. diversity crushing chamber types
3. special sales form and easy operation
4. overload protection and easy maintenance

Working principle:

Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.

Technical data:

Model

Cone Diameter

(mm)

Max. Feed Size

(mm)

Outlet Setting Size

(mm)

Capacity

(t/h)

Power

(kw)

Overall Dimension

(mm)

PYB-600 600 66 12-25 15-25 30 1740X1225X1940
PYD-600 600 36 3-13 5-23 30 1740X1225X1940
PYB-900 900 115 15-50 50-90 55 1990X1640X2380
PYZ-900 900 60 5-20 20-65 55 1990X1640X2380
PYD-900 900 40 3-13 15-50 55 1990X1640X2380
PYB-1200 1200 145 20-50 110-200 110 2805X2300X2980
PYZ-1200 1200 100 8-26 50-150 110 2805X2300X2980
PYD-1200 1200 50 3-15 18-105 110 2805X2300X2980
PYB-1750 1750 215 25-60 280-480 155-160 3610X2950X4185
PYZ-1750 1750 185 10-30 115-230 155-160 3610X2950X4185
PYD-1750 1750 85 5-15 75-230 155-160 3610X2950X4185
PYB-2200 2200 300 30-60 590-1000 260-280 4790X3430X5080
PYZ-2200 2200 230 10-30 200-580 260-280 4790X3430X5080
PYD-2200 2200 110 5-16 120-370 260-280 4790X3430X5080
