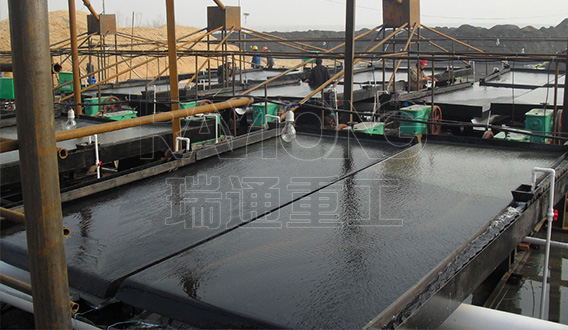

Shaking Table

Processing ability:

Capacity: 15-60 tpd

Brief introduction:

High Recovery Rate Gold Ore 6-S Shaking Table For Sale is one of the important dressing equipment depending on the gravity.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

It is widely used in to classify the granularity 2-0.02 millimeters ore and ore slime of tungsen, tin, niobium, manganese, chromium, titanium, lead , zinc, gold, iron(rediron, brown iron) and so on

Features:

1. Great ratio of high-grade ore, high separating efficiency, easy to operate and convenient to adjust the stroke.

2. Strong wear resistance of the working surface.

3. Anti-chemical corrosion, acid and alkali.

4. Strong resistance to harsh environment.

Working principle:

The bed zone of shaking table is near a rectangle shape, slightly inclined to the tailing end. There are craved chute on the surface of bed, the water flow along the incline direction from water tank and feeding chute. The bed surface do repeatedly motion by transmission mechanism, the distance of bed forward and backward called stroke, when the slurry enters into feeding chute, under the action of water flow and shaking, different density of mineral particles will be distributed in fanshape on the bed surface.

Technical data:

Name		bed surface for coarse sand	bed surface for fine sand	bed surface for slurry
Bed	Length(mm)	4450	4450	4450
dimension	transmission end width(mm)	1855	1855	1855
	concentrate ore width(mm)	1546	1546	1546
Max Feeding Size(mm)		2	0.5	0.15
Feeding volume(t/h)		30-60	10-20	15-25
Feeding density(%)		25-30	20-25	15-25
stroke(mm)		16-22	11-16	8-16
Frequency( t/s)		45-48	48-53	50-57
Cross Slope of Surface		2.5°-4.5°	1.5°-3.5°	1°-2°
mineral dressing area(㎡)		7.6	7.6	7.6
Shape of bed surface		Rectangle	indention	Triangle
Motor Power(KW)		1.1	1.1	1.1
Driving type		Eccentric link structure
Remarks: Any change of technical parameters, there is no further notice.
