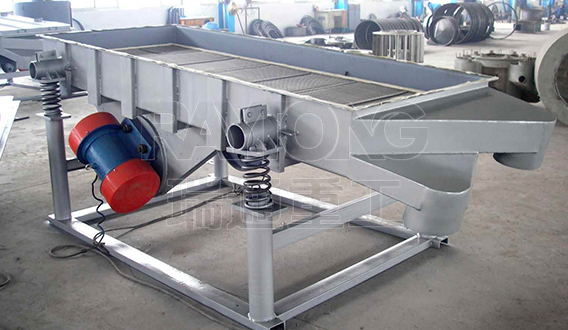

Linear vibrating screen

Processing ability:

1-30t/h

Brief introduction:

The linear vibrating screen is equiped with single-layer or multi-layer seive to achieve the target of rating, impurity, removing powder, testing, washing, dehydration etc.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

The linear vibrating screen can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.

Features:

(1) Low energy consumption, low noise and long service life.

(2) Screening of high precision,screen up to 0.074mm.

(3) Tightness with little dust spilling. It can be enclosed or connected with duct collector.

(4) It can be used for automatic production line due to fully enclosed structure.

(5) Sieve body parts are used rolled welded steel plate and profiles with stable solid and reliable features

Working principle:

The linear vibrating screen machine uses vibration motor as vibration source. Materials are put into the inlet of the screen machine by the feeder evenly. The sieved materials are jumped and moved in the straight movement at the same time.So the materials are separated to different sizes through the screen. Separated materials are discharged from different outlet.

Technical data:

Model	Screen size(mm)	Particle size (mm)	Screen slope	Double amplitude(mm) (°)	Layer	Frequency(r/min)	Power(kw)
SZF-520	500X2000	0.074-60	1°-7°	3-4.5	1-6	960	2x(0.37-0.75)
ZX-525	500X2500						2x(0.37-0.75)
ZX-1020	1000X2000						2x(0.55-1.0)
ZX-1025	1000X2500						2x(0.55-1.0)
SZF-1225	1200x2500						2x(0.75-1.5)
SZF-1230	1200x3000						2x(0.75-1.5)
SZF-1235	1200x3500						2x(1.5-2.0)
SZF-1530	1500x3000						2x(2.0-2.2)
SZF-1535	1500x3500						2x(2.0-2.2)
