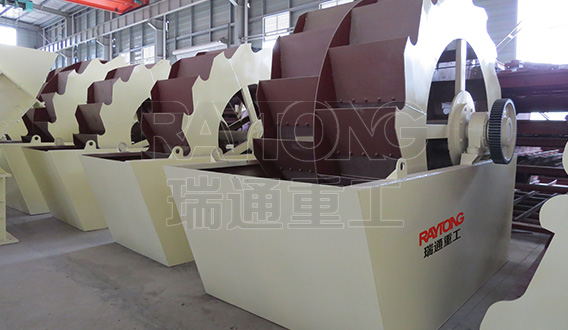

Home > Product > XSD Sand Washer
30–160 t/h
The Sand washing machine is used to wash stone powder and residual away from the sand.
Applications:
metallurgy, building materials, utilities and other industries washing, grading, cleaning and etc
Applications:
1. Sand washing machine is artificial sand wet processing of the necessary equipment, which can effectively improve the quality of the finished sand.
2. Our development and production of XSD series of highly efficient bucket wheel sand washing machine combined with the actual situation of domestic and gravel industry, both cleaning, dewatering, grading three functions, widely used in metallurgy, building materials, utilities and other industries washing, grading, cleaning and other operation
Features:
1.Sand washing machine structure simplicity, Long life, long-term without repairs.
2.Reasonable structure, convenient repairs, large capacity, power consumption is small.
Working principle:
Power plant by belt, reducer, gear reducer drive the impeller rotates slowly, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.
Technical data:
Model | Sieve specification (mm) | layer | Mesh size (mm) | Max feeding size (mm) | Processing capacity (t/h) | Moto power (kw) | Vibrating Frequency (r/min) | Double amplitude (mm) |
2YK1237 | 1200X3700 | 2 | 3-50 | 200 | 30-100 | 5.5 | 970 | 5-9 |
3YK1237 | 1200X3700 | 3 | 3-50 | 200 | 30-100 | 7.5 | ||
2YK1548 | 4800X1500 | 2 | 3-100 | 400 | 30-275 | 15 | ||
3YK1548 | 4800X1500 | 3 | 3-100 | 30-275 | 15 | |||
2YK1848 | 4800X1800 | 2 | 3-100 | 56-330 | 18.5 | |||
3YK1848 | 4800X1800 | 3 | 3-100 | 56-330 | 18.5 | |||
4YK1848 | 4800X1800 | 4 | 3-80 | 56-330 | 22 | |||
2YK1860 | 6000X1800 | 2 | 3-100 | 65-586 | 18.5 | |||
3YK1860 | 6000X1800 | 3 | 3-100 | 65-586 | 22 | |||
4YK1860 | 6000X1800 | 4 | 3-100 | 65-586 | 30 | 980 | ||
2YK2160 | 6000X2100 | 2 | 3-100 | 81-720 | 22 | 980 | ||
3YK2160 | 6000X2100 | 3 | 3-100 | 81-720 | 30 | 970 | ||
4YK2160 | 6000X2100 | 4 | 3-100 | 81-720 | 37 | 980 | ||
2YK2460 | 6000X2400 | 2 | 3-150 | 100-810 | 22 | 970 | ||
3YK2460 | 6000X2400 | 3 | 3-150 | 100-810 | 30 | 980 | ||
4YK2460 | 6000X2400 | 4 | 3-150 | 150-850 | 37 | 980 | ||
2YK2470 | 7000X2400 | 2 | 3-100 | 180-900 | 30 | 980 | ||
3YK2470 | 7000X2400 | 3 | 3-100 | 180-900 | 37 | 980 | ||
4YK2470 | 7000X2400 | 4 | 3-100 | 180-900 | 45 | 980 | ||
2YK2480 | 8000X2400 | 2 | 3-150 | 190-940 | 30 | 980 | ||
3YK2480 | 8000X2400 | 3 | 3-150 | 190-940 | 37 | 980 | ||
4YK2480 | 8000X2400 | 4 | 3-150 | 190-940 | 45 | 980 | ||
2YK3070 | 7000X2400 | 2 | 3-100 | 220-1000 | 37 | 980 | ||
3YK3070 | 7000X2400 | 3 | 3-150 | 220-1000 | 45 | 980 | ||
4YK3070 | 7000X2400 | 4 | 3-150 | 220-1000 | 55 | 980 |
