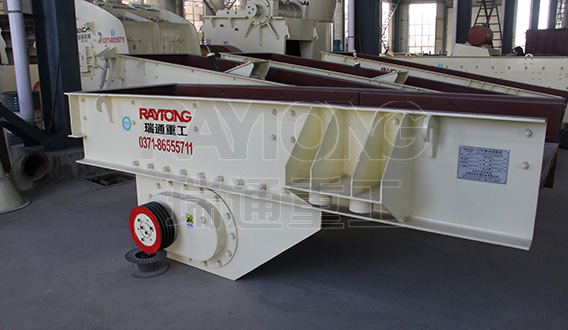

Vibrating Feeder

Processing ability:

80–800 t/h

Brief introduction:

The Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously.

Send us at baichenruitong@163.com

Application
Features
Working principle
Technical data
Related Production
Sent Inquiry

Applications:

metallurgy, coal mine, mineral dressing, building materials, chemical, abrasive material and etc
Vibrating feeder can send massive and granular materials from storage bin to feeding device evenly, regularly and continuously, at the same time, realize coarse sieving of materials, so vibratory feeder is widely used in crushing or screening production line in metallurgy, coal mine, mineral dressing, building materials, chemical, abrasive material and other industries.

Features:

1. Stable vibration, reliable operation, long working life;
2. Simple structure, reliable operation, convenient maintenance.

Working principle:

ZSW series vibrating feeder is eccentric shaft exciting source, gear transmission, low noise, smooth operation, long life,while the fine material can be pre-sieved so that the crusher efficient. Adjust the gap fences designed to prevent clogging materials, customer optional motor, easy to control the feeding capacity without frequent motor starts.

Technical data:

Model	Trough size(mm)	Max feed size(mm)	Capacity (t/h)	Motor Power(kw)	Overall dimension LWH(mm)
ZSW-650*2500	650*2500	300	50-80	5.5	25001360780
ZSW-850*3000	850*3000	400	80-120	7.5	311018001600
ZSW-960*3800	950*3800	500	120-210	11	385019501630
ZSW-1100*4200	1100*4200	580	200-430	15	440020501660
ZSW-1100*4900	1100*4900	580	280-500	15	520020501700
ZSW-1300*4900	1300*4900	650	450-600	22	520023501750
