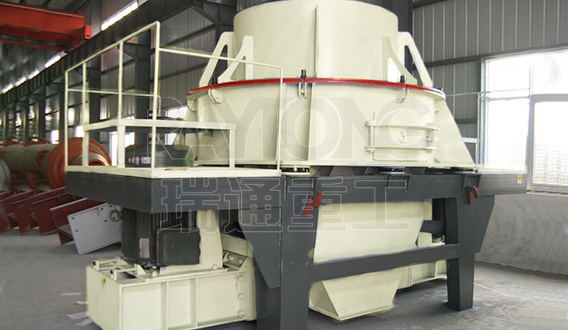

PCL Sand Maker

Processing ability:

12–360 t/h


Brief introduction:

PCL sand maker is a highly efficient crushing machine which introduces “stone to stone” crushing principle from American Bamac company.

PCL Sand Maker PCL Sand Maker
PCL Sand Maker

Applications:

the products are widely used in various ores, cement, refractories, bauxite, carborundum, glass raw materials, mechanism building sand, stone and various metallurgical slag and other industries.
Widely used in artificial sand, stone integer, also used for high abrasion and secondary crushing disintegration, thermal power, metallurgy industry, in addition to sulfur.

Features:

1. Simple structure, versatility
2. High-speed rotation, energy efficient
3. Safety and environmental protectionand durable
4. A multi-purpose, flexible application
5. High hardness material crushing
6. Strong adaptability
7. Low working noise

Working principle:

Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then it is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.

Technical data:

Model Impeller Speed(r/min) Max. Input Size(mm) Capacity(t/h) Motor Type Motor Power(KW) Overall Dimension(mm)
PCL-600 2000-2600 26 12-30 Y200L1-2 2*30 2800*1460*2030
PCL-600B 2000-2600 26 12-50 Y200L2-2 2*37 2800*1460*2030
PCL-750 1500-2500 35 26-65 Y225M-4 2*45 3300*1800*2440
PCL-900 1300-1700 35 55-120 Y250M-4 2*55 3750*2120*2660
PCL-900B 1000-1450 40 60-150 Y280M-4 2*90 3750*2120*2660
PCL-1050 1000-1700 40 100-160 Y315S-4 2*110 4480*2450*2906
PCL-1250 950-1200 40 100-260 Y315M-4 2*132 4563*2650*3176
CSB-1350 800-1200 60 160-360 Y315L2-4 2*200 5340*2940*3650
