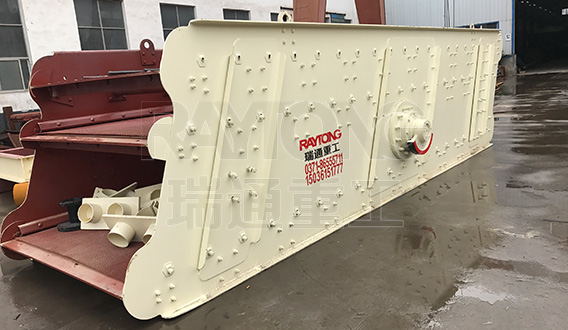

Home > Product > Circular vibrating screen
30–850 t/h
Circular vibrating screen is new type of highly efficiency vibrating screen with multiple levels and the materials that go through the machine move in a circular motion.
Applications:
pebble, limestone, granite, basalt, diabase, andesite, etc
Since it has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, circular vibrating screen is widely used for the product classification in mine, building material, transportation, energy and chemistry.
Features:
1.Sieving high frequency, small amplitude, high efficiency.
2.high efficiency, large capacity, the moisture content of the material requirements low.
3.With eccentric block as exciting force, strong exciting force.
Working principle:
Motor drives the V-belt to make the eccentric block rotate in high speed, so that producing large centrifugal force to make exciter produce the amplitude in circular motion, the materials on the screen surface will be throwing motion continuously under the function of exciter, during the process of materials contacting with the screen surface, final products will be classified.
Technical data:
Model | Sieve specification (mm) | layer | Mesh size (mm) | Max feeding size (mm) | Processing capacity (t/h) | Moto power (kw) | Vibrating Frequency (r/min) | Double amplitude (mm) |
2YK1237 | 1200X3700 | 2 | 3-50 | 200 | 30-100 | 5.5 | 970 | 5-9 |
3YK1237 | 1200X3700 | 3 | 3-50 | 200 | 30-100 | 7.5 | ||
2YK1548 | 4800X1500 | 2 | 3-100 | 400 | 30-275 | 15 | ||
3YK1548 | 4800X1500 | 3 | 3-100 | 30-275 | 15 | |||
2YK1848 | 4800X1800 | 2 | 3-100 | 56-330 | 18.5 | |||
3YK1848 | 4800X1800 | 3 | 3-100 | 56-330 | 18.5 | |||
4YK1848 | 4800X1800 | 4 | 3-80 | 56-330 | 22 | |||
2YK1860 | 6000X1800 | 2 | 3-100 | 65-586 | 18.5 | |||
3YK1860 | 6000X1800 | 3 | 3-100 | 65-586 | 22 | |||
4YK1860 | 6000X1800 | 4 | 3-100 | 65-586 | 30 | 980 | ||
2YK2160 | 6000X2100 | 2 | 3-100 | 81-720 | 22 | 980 | ||
3YK2160 | 6000X2100 | 3 | 3-100 | 81-720 | 30 | 970 | ||
4YK2160 | 6000X2100 | 4 | 3-100 | 81-720 | 37 | 980 | ||
2YK2460 | 6000X2400 | 2 | 3-150 | 100-810 | 22 | 970 | ||
3YK2460 | 6000X2400 | 3 | 3-150 | 100-810 | 30 | 980 | ||
4YK2460 | 6000X2400 | 4 | 3-150 | 150-850 | 37 | 980 | ||
2YK2470 | 7000X2400 | 2 | 3-100 | 180-900 | 30 | 980 | ||
3YK2470 | 7000X2400 | 3 | 3-100 | 180-900 | 37 | 980 | ||
4YK2470 | 7000X2400 | 4 | 3-100 | 180-900 | 45 | 980 | ||
2YK2480 | 8000X2400 | 2 | 3-150 | 190-940 | 30 | 980 | ||
3YK2480 | 8000X2400 | 3 | 3-150 | 190-940 | 37 | 980 | ||
4YK2480 | 8000X2400 | 4 | 3-150 | 190-940 | 45 | 980 | ||
2YK3070 | 7000X2400 | 2 | 3-100 | 220-1000 | 37 | 980 | ||
3YK3070 | 7000X2400 | 3 | 3-150 | 220-1000 | 45 | 980 | ||
4YK3070 | 7000X2400 | 4 | 3-150 | 220-1000 | 55 | 980 |
